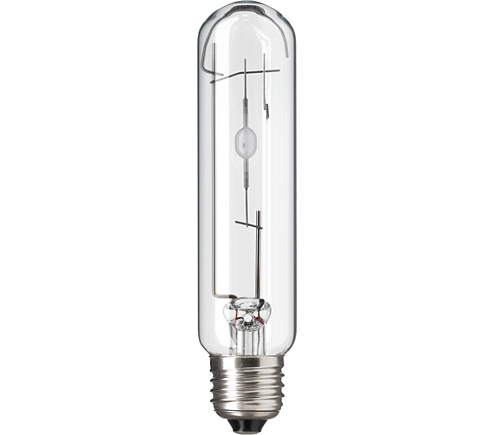

Philips MASTER City White CDO-TT Plus 50W/828 E27

Specifications

General information

Cap base	E27  [ E27]
Operating position	UNIVERSAL  [ Any/Universal]
Life to 5% failures (nom.)	13000 h
Life to 10% failures (nom.)	15000 h
Life to 20% failures (nom.)	17000 h
Life to 50% failures (nom.)	21000 h
LSF 2000 h Rated	99 %

LSF 4000 h Rated	99 %
LSF 6000 h Rated	99 %
LSF 8000 h Rated	98 %
LSF 12000 h Rated	90 %
LSF 16000 h Rated	74 %
LSF 20000 h Rated	50 %
	Sphere

Light technical

Colour Code	828  [ CCT of 2,800 K]
Luminous flux (nom.)	5500 lm
Luminous flux (rated) (nom.)	5500 lm
Colour designation	Warm white (WW)
Chromaticity coordinate X (nom.)	0.447
Chromaticity coordinate Y (nom.)	0.4
Correlated Colour Temperature (Nom)	2800 K
Luminous efficacy (rated) (nom.)	104 lm/W

Colour-rendering index (min.)	81
Colour rendering index (nom.)	84
LLMF 2000 h Rated	98 %
LLMF 4000 h Rated	96 %
LLMF 6000 h Rated	92 %
LLMF 8000 h Rated	88 %
LLMF 12000 h Rated	80 %
LLMF 16000 h Rated	74 %
LLMF 20000 h Rated	71 %
Ratio scotopic/photopic lumens	1.30

Operating and electrical

Power (Rated) (Nom)	53.0 W
Lamp current run-up (max.)	0.9 A
Lamp current (EM) (nom.)	0.760 A
Ignition peak voltage (max.)	2500 V
Ignition supply voltage (min.)	198 V

Re-ignition time (min.) (max.)	720 s
Ignition time (max.)	30 s
Voltage (Max)	92 V
Voltage (Min)	76 V
Voltage (Nom)	83 V

Controls and dimming

Dimmable	Yes
Run-up time 90% (max.)	3 min

Mechanical and housing

Lamp Finish	Clear
Bulb shape	T31  [ T 31mm]

Approval and application

Energy Efficiency Class	F
Mercury (Hg) content (max.)	5.4 mg
Mercury (Hg) content (nom.)	5.4 mg

Energy consumption kWh/1,000 hours	53 kWh
	473330

UV

PET (NIOSH) (min.)

8 h/500lx

Luminaire design requirements

Bulb temperature (max.)	350 °C
Cap-base temperature (max.)	200 °C

Cap-Base Temperature (Max)-DUP(do not use)

392 °F

Product data

Full product code	871829118561100
Order product name	MASTER CityWhite CDO-TT Plus 50W/828 E27
EAN/UPC – product	8718291185611
Order code	18561100
Local order code	50CDOTTPLUS828
SAP numerator – quantity per pack	1

Local code description	MASTER CityWhite CDO-TT Plus 50W/828 E27
Numerator – packs per outer box	12
SAP material	928082419235
Net Weight (Piece)	0.060 kg
ILCOS code	MT-50/828-H-E27-39/156
