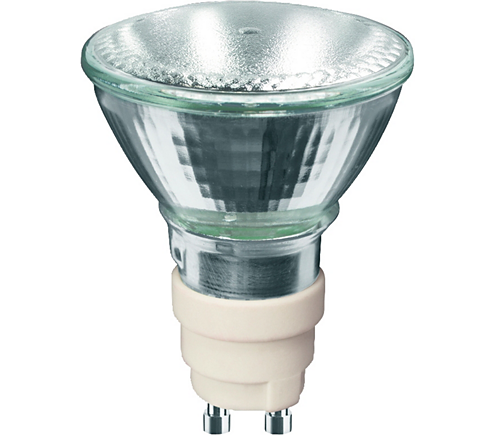

Philips MASTER Colour CDM-Rm Elite Mini 20W/830 GX10 MR16 10D

Specifications

General information

Cap base	GX10  [ GX10]
Operating position	UNIVERSAL  [ Any/Universal]
Life to 5% failures (nom.)	9000 h
Life to 10% failures (nom.)	10000 h
Life to 20% failures (nom.)	12000 h

Life to 50% failures (nom.)	15000 h
ANSI code HID	C156/O
Switching cycle	1350X
	Narrow Cone

Light technical

Colour Code	830  [ CCT of 3,000 K]
Beam Angle (Nom)	10 °
Beam angle technical	9 °
Beam angle technical	11 °
Beam angle technical	7 °
Luminous flux (nom.)	880 lm
Luminous flux (rated) (min.)	900 lm
Luminous flux (rated) (nom.)	980 lm
Luminous intensity (min.)	10900 cd
Luminous intensity (nom.)	14500 cd
Beam description	-

Lumen maintenance 12,000 hours (nom.)	75 %
Lumen maintenance 2,000 hours (nom.)	90 %
Lumen maintenance 4,000 hours (nom.)	85 %
Chromaticity coordinate X (nom.)	0.434
Chromaticity coordinate Y (nom.)	0.398
Correlated Colour Temperature (Nom)	3000 K
Luminous efficacy (rated) (nom.)	49 lm/W
Colour-rendering index (min.)	81
Colour rendering index (nom.)	84
LLMF at end of nominal lifetime (nom.)	70 %
Luminous flux in 90° cone (rated)	880 lm

Operating and electrical

Power (Rated) (Nom)	20.1 W
Re-ignition time (min.) (max.)	15 min
Warm-up time to 60% light (nom.)	120 s
Ignition time (max.)	30 s

Voltage (Max)	100 V
Voltage (Min)	90 V
Voltage (Nom)	95 V

Controls and dimming

Dimmable

No

Run-up time 90% (max.)

3 min

Mechanical and housing

Bulb shape

MR16  [ 2inch/50mm]

Approval and application

Energy Efficiency Class	G
Mercury (Hg) content (max.)	3.5 mg
Mercury (Hg) content (nom.)	3.5 mg

Energy consumption kWh/1,000 hours	21 kWh
	473266

UV

PET (NIOSH) (min.)

8 h/500lx

Damage factor D/fc (max.)

0.4

Luminaire design requirements

Reflector neck temperature (max.)

419 °F

Product data

Full product code	871829120274500
Order product name	MASTERColour CDM-Rm Elite Mini 20W/830 GX10 MR16 10D
EAN/UPC – product	8718291202745
Order code	20274500
Local order code	20CDMRM83010
SAP numerator – quantity per pack	1

Calculated local code description B2B	MC CDM-Rm Mini 20W/830 GX10 MR16 10D
Numerator – packs per outer box	12
SAP material	928191005331
Net Weight (Piece)	0.047 kg
ILCOS code	MRS/UB-20/830-H-GX10-51/54.5/10
