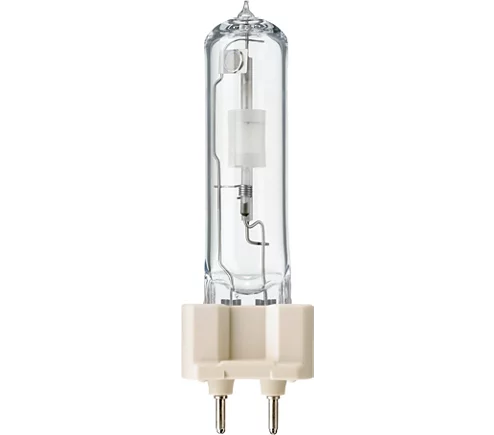

Phillips Master 150W/830 Colour CDM-T G12 1CT Ceramic Metal Halide Lamp 3000K

Specifications

General information

Cap base	G12  [ G12]
Operating position	UNIVERSAL  [ Any/Universal]
Life to 5% failures (nom.)	9000 h
Life to 10% failures (nom.)	10000 h

Life to 20% failures (nom.)	11000 h
Life to 50% failures (nom.)	12000 h
ANSI code HID	C142/E
	Sphere

Light technical

Colour Code	830  [ CCT of 3,000 K]
Luminous flux (nom.)	13000 lm
Luminous flux (rated) (min.)	11700 lm
Luminous flux (rated) (nom.)	13000 lm
Colour designation	Warm white (WW)
Lumen maintenance 10,000 hours (nom.)	60 %
Lumen maintenance 2,000 hours (min.)	65 %
Lumen maintenance 2,000 hours (nom.)	75 %

Lumen maintenance 5,000 hours (min.)	60 %
Lumen maintenance 5,000 hours (nom.)	70 %
Chromaticity coordinate X (nom.)	0.434
Chromaticity coordinate Y (nom.)	0.398
Correlated Colour Temperature (Nom)	3000 K
Luminous efficacy (rated) (nom.)	88 lm/W
Colour rendering index (nom.)	88

Operating and electrical

Power (Rated) (Nom)	150.1 W
Lamp current run-up (max.)	2.5 A
Lamp current (EM) (nom.)	1.8 A
Ignition supply voltage (max.)	198 V
Ignition peak voltage (max.)	5000 V
Ignition supply voltage (min.)	198 V

Ignition peak voltage (min.)	3500 V
Re-ignition time (min.) (max.)	15 min
Ignition time (max.)	30 s
Voltage (Max)	106 V
Voltage (Min)	86 V
Voltage (Nom)	96 V

Controls and dimming

Dimmable

No

Run-up time 90% (max.)

3 min

Mechanical and housing

Lamp Finish

Clear

Bulb shape

T19  [ T 19mm]

Approval and application

Energy Efficiency Class	G
Mercury (Hg) content (max.)	14.3 mg
Mercury (Hg) content (nom.)	14.3 mg

Energy consumption kWh/1,000 hours	151 kWh
	473335

UV

PET (NIOSH) (min.)

8 h/500lx

Damage factor D/fc (max.)

0.3

Luminaire design requirements

Bulb temperature (max.)	650 °C
Cap-base temperature (max.)	280 °C
Cap-Base Temperature (Max)-DUP(do not use)	536 °F

Pinch temperature (max.)	350 °C
Pinch Temperature (Max)-DUP(do not use)	350 °C

Product data

Full product code	871150019780115
Order product name	MASTERColour CDM-T 150W/830 G12 1CT
EAN/UPC – product	8711500197801
Order code	19780115
Local order code	150CDMT830
SAP numerator – quantity per pack	1

Local code description	8348300
Numerator – packs per outer box	12
SAP material	928083705125
Net Weight (Piece)	33.000 g
ILCOS code	MT/UB-150/830-H-G12-21/100
