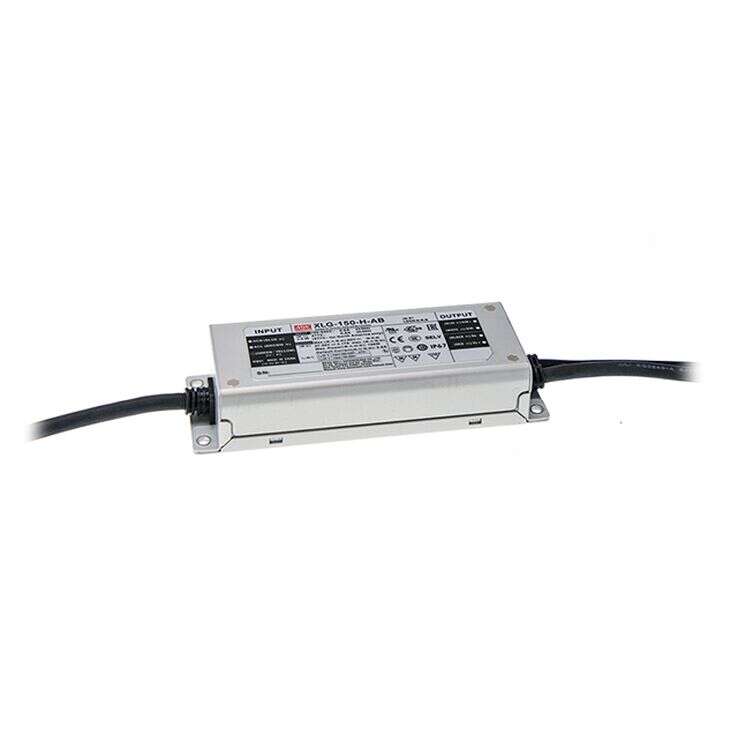

MEAN WELL XLG-150-12/24-A Constant Voltage LED Driver 150W 12V Features:
Wide input range 100-305VAC(Class I)
Metal case with IP67 , suitable for outdoor application
Other features:
- Surge protection with 6KV/4KV (10KV/6KV optional)
- 3in1 dimming function (Dim to off and Isolation design)
- Protection functions: OVP/SCP/OCP/OTP
- Life time >50,000hrs. and 5 years warranty
| Wattage | 150 |
| Input Voltage | 100-305VAC, 142-431VDC |
| Output Current | 12.5A |
| Output Voltage Options | Single |
| DC output adjustment | 8.4-12V |
| Working Temperature | -40 - +95C |
| Safety Standards | UL8750ENEC EN61347-1, EN61347-2-13 independent, EN62384(typebHLb), UL879,CSA C22.2 No. 250.13-12, GB19510.1 GB19510.14,; EAC TP TC 004;IS15885(Part2/Sec13)(for XLG-150I type only);IP67 approved |
| Dimensions | 180 x 63 x 35.5 |
