Module LLE 24mm 1250lm High Efficacy HV ADV5

Modules LLE advanced

•

  LLE 24x280mm 1250lm HE HV ADV5

•

  LLE 24x560mm 2400lm HE HV ADV5

•

  For articles manufactured at Tridonic SRB d.o.o.

•

  LLE 24x280mm 1250lm HV ADV5

Product description

• Ideal for linear and panel lights
• 2 terminals for serial wiring
• Perfectly uniform light, even if several LED modules are used together in a line
• Push terminals for quick and simple wiring of LED module to LED module
• Broad portfolio from extruded lenses and covers available
• HE ... High Efficiency, NM ... Nominal Mode, HO ... High Output.
• Long lifetime up to 72,000 hours
• 5 years guarantee

Optical properties

• Colour temperatures 3,000 and 4,000 K
• Useful luminous flux 2,529 lm at Irated and tp = 25 °C
• Efficacy of the LED module 204 lm/W at Irated and tp = 25 °C
• High colour rendering index CRI > 80
• High colour consistency (MacAdam 3) (1)
• Small luminous flux tolerances

Mechanical properties

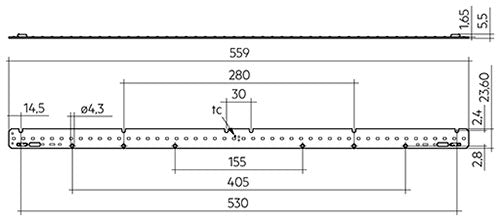

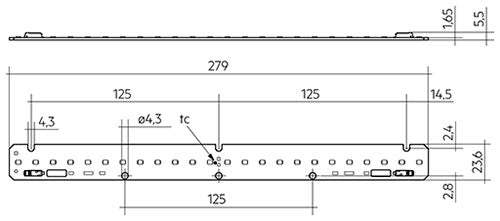

• Module dimension 24 x 280 mm and 24 x 560 mm (ZHAGA compliant)
• Simple installation via clips or screws

System solution

• Combine Tridonic's LED modules and dimmable drivers to achieve an outstanding system efficacy (configuration possible via https://setbuilder.tridonic.com/)

• ⁽¹⁾Integral measurement over the complete module.
