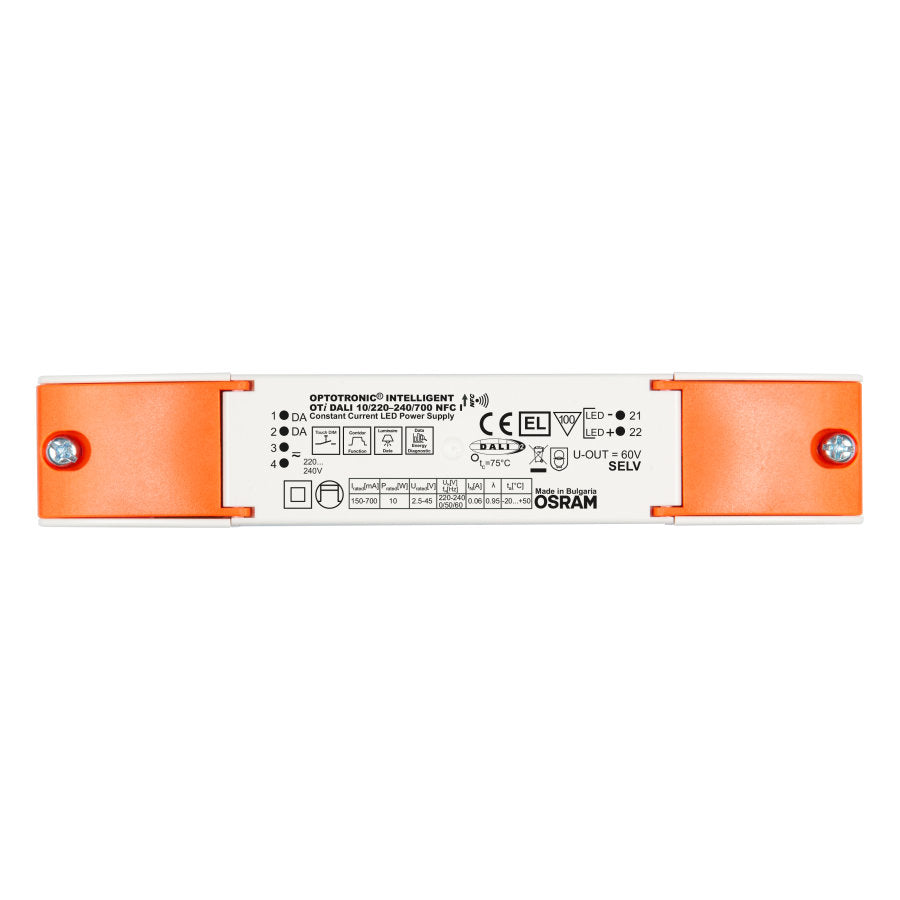

Wattage:
Voltage:
EAN:
Manufacturer:
Product family benefits
- Versatile DALI window driver due to flexible output characteristic
- Locking and unlocking of luminaire/driver data
- Easy and fast output current setting via NFC
- Very high efficiency
- High-quality dimming of 1…100 % by amplitude dimming
- DALI-2 certified incl. Parts 251, 252, 253
Areas of application
- Suitable for downlights, spotlights and LED panels
- Suitable for use in luminaires with flexible current setting
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for indoor SELV installations
- Suitable for luminaires of protection classes I and II
Technical Data
Electrical data
Nominal input voltage
220…240 V
Mains frequency
0/50/60 Hz
Input voltage AC
198…264 V
Input voltage DC
176…276 V
Total harmonic distortion
15 %
Power factor λ
> 0.98/> 0.94
Efficiency in full-load
82 %
Device power loss
3.5 W
Networked standby power
≤0.15 W
Inrush current
< 5 A
Max. ECG no. on circuit breaker 10 A (B)
80
Max. ECG no. on circuit breaker 16 A (B)
130
Surge capability (L/N-Ground)
2 kV
Surge capability (L-N)
1 kV
Nominal output voltage
2.5…45 V
U-OUT (working voltage)
60 V
Nominal output current
150…700 mA
Default output current
350 mA
Output current tolerance
±3 %
Output ripple current (100 Hz)
< 2 %
Output PSTLM
≤1
Output SVM
≤0.4
Nominal output power
10 W
Maximum output power
10 W
Current set
DALI / NFC
Galvanic isolation DALI/mains
Basic
Galvanic isolation DALI/output
SELV
Galvanic isolation primary/secondary
SELV
Dimensions & weight
Mounting hole spacing, length
132.0 mm
Product weight
76.00 g
Cable cross-section, input side
0.2…1.5 mm²
Cable cross-section, output side
0.2…1.5 mm²
Wire preparation length, input side
8.0…9.1 mm
Wire preparation length, output side
8.0…9.1 mm
Width
30.0 mm
Height
22.0 mm
Length
166.0 mm
Colors & materials
Casing material
Plastic
Temperatures & operating conditions
Ambient temperature range
-25…+50 °C
Maximum temperature at tc test point
75 °C
Max.housing temperature in case of fault
110 °C
Temperature range at storage
-40…+85 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
50000 / 100000 h
Additional product data
Encapsulated
No
Capabilities
Dimmable
Yes
Dimming interface
DALI-2 / Touch DIM / Touch DIM Sensor
Dimming range
1…100 %
Dimming method
Amplitude Modulation
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Short-circuit protection
Automatic reversible
No-load proof
Yes
Intended for no-load operation
No
Max. cable length to lamp/LED module
2.0 m
Suitable for fixtures with prot. class
I / II
Type of connection, input side
Push terminal
Type of connection, output side
Push terminal
Constant lumen function
Programmable
Number of channels
1
Suitable for emergency lighting
Yes
DALI-2 Diagnostic Data
Yes
DALI-2 Energy Data
Yes
Control interface
DALI
Programming interface
DALI, NFC
Programming
Tuner4TRONIC Field App
Yes
Box programming
Yes
Programming device
DALI / NFC
Tuner4TRONIC
Yes
Programmable features
Dim to Dark
Yes
Emergency Mode
Yes
DALI-2 Luminaire Data
Yes
Configuration Lock
Yes
OEM Key
No
Driver Guard
Yes
Lamp Operating Time
Yes
Constant Lumen
Yes
DALI Settings
Yes
Soft Switch Off
Yes
Certificates & standards
Approval marks – approval
ENEC / VDE-EMC / EL / CE / DALI-2
Standards
Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 55015/Acc. to IEC 61547/Acc. to IEC 61000-3-2/Acc. to IEC 62384/Acc. to IEC 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1
Protection class
II
Type of protection
IP20
Logistical data
Commodity code
850440829000
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
23-12-2021
Primary Article Identifier
4062172151252
Candidate List Substance 1
Lead
CAS No. of substance 1
7439-92-1
Safe Use Instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database
29b9dba8-1ed1-4837-96a0-fbcd3972c828
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4062172151252 | UNV
|
1 | 166mm x 30mm x 22mm | 76.00g | 0.11dm³ |
| 4062172151269 | VS
|
20 | 344mm x 126mm x 83mm | 1639.00g | 3.60dm³ |
