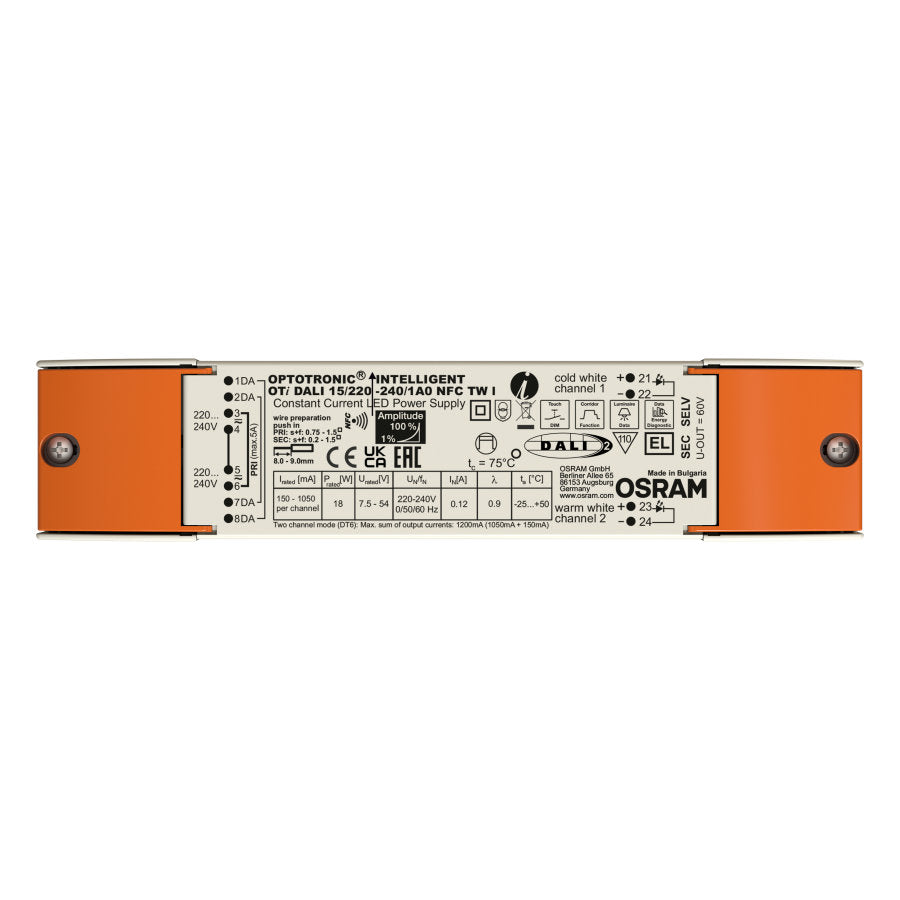

Product family benefits
- Control of standard white or Tunable White light acc. DALI device type 8 (DT8)
- TouchDIM Tunable White integrated for use without additional LMS
- Fully programmable via T4T software (NFC, DALI Interface)
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High-quality dimming of 1…100 % by amplitude dimming
- High quality of light thanks to <1% output ripple current
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
- Classrooms
- Conference rooms
- Daylight simulation for windowless rooms
- For Tunable White as well as for 2-channel use (e.g. direct/indirect lighting)
- Healthcare and hospitality with HCL functionality
- Independent mounting via Cable Clamp Kit possible
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Office with high end HCL functionality
- Suitable for indoor and outdoor SELV installations
Technical Data
Electrical data
Nominal input voltage
220…240 V
Mains frequency
0/50/60 Hz
Input voltage AC
198…264 V
Input voltage DC
176…276 V
Total harmonic distortion
< 15 %
Power factor λ
0.47C...0.92C
Efficiency in full-load
85 %
Inrush current
17 A
Max. ECG no. on circuit breaker 10 A (C)
-
Max. ECG no. on circuit breaker 10 A (B)
27
Max. ECG no. on circuit breaker 16 A (C)
-
Max. ECG no. on circuit breaker 16 A (B)
43
Max. ECG no. on circuit breaker 25 A (B)
-
Surge capability (L/N-Ground)
2 kV
Surge capability (L-N)
1 kV
Nominal output voltage
7.5…54 V
U-OUT (working voltage)
60 V
Nominal output current
150…1050 mA
Default output current, 2-channel DT6
300 mA
Default output current, TW DT8
300 mA
Output current tolerance
±3 %
Output ripple current (100 Hz)
< 2 %
Output PSTLM
<1
Output SVM
<0.4
Nominal output power
18 W
Maximum output power
18 W
Galvanic isolation DALI/output
SELV
Power loss in stand-by mode
<0.2 W
Galvanic isolation primary/secondary
SELV
Current set
DALI / NFC
Default output current
300 mA
Networked standby power
<0.20 W
Galvanic isolation DALI/mains
Basic
Dimensions & weight
Mounting hole spacing, length
167.8 mm
Mounting hole spacing, width
-
Product weight
190.00 g
Cable cross-section, input side
0.75…1.5 mm²
Cable cross-section, output side
0.2…1.5 mm²
Wire preparation length, input side
8.0…9.0 mm
Wire preparation length, output side
8.0…9.0 mm
Width
44.5 mm
Length
203.0 mm
Height
34.0 mm
Colors & materials
Casing material
Plastic
Temperatures & operating conditions
Ambient temperature range
-25…+50 °C
Maximum temperature at tc test point
75 °C
Max.housing temperature in case of fault
110 °C
Temperature range at storage
-40…+85 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
50000 / 100000 h
Additional product data
Encapsulated
No
Capabilities
Dimmable
Yes
Dimming interface
DALI-2 / Touch DIM / Touch DIM Sensor
Dimming range
1…100 %
Dimming method
Amplitude Modulation
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Short-circuit protection
Automatic reversible
No-load proof
Yes
Intended for no-load operation
No
Max. cable length to lamp/LED module
2.0 m
Suitable for fixtures with prot. class
I / II
Type of connection, input side
Push terminal
Type of connection, output side
Push terminal
Detection angle (Light sensor)
-
Suitable for through-wiring
Yes
Suitable for emergency lighting
Yes
DALI-2 Diagnostic Data
Yes
DALI-2 Energy Data
Yes
Control interface
DALI-2
Programming interface
DALI, NFC
Number of channels
2
Detection angle (PIR)
-
Constant lumen function
Programmable
Programming
Programming device
DALI / NFC
Tuner4TRONIC
Yes
Box programming
Yes
Tuner4TRONIC Field App
No
Programmable features
Soft Switch Off
Yes
Dim to Dark
Yes
TouchDIM + Sensor
Yes
Emergency Mode
Yes
DALI-2 Luminaire Data
Yes
Configuration Lock
Yes
OEM Key
No
Corridor Functionality
Yes
DALI Settings
Yes
End of Life
-
Driver Guard
Yes
Operating Current
Yes
Constant Lumen
Yes
Lamp Operating Time
Yes
Certificates & standards
Approval marks – approval
CE / UKCA / EAC / DALI-2 / EL
Standards
Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to EN 55015/Acc. to IEC 62386/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547/Acc. to CISPR 15/Acc. to ETSI EN 300 330/Acc. to ETSI EN 301 489 - 1/Acc. to ETSI EN 301 489-3
Protection class
II
Type of protection
IP20
Logistical data
Commodity code
850440839000
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
01-03-2023
Primary Article Identifier
4062172211543
Candidate List Substance 1
Lead
CAS No. of substance 1
7439-92-1
Safe Use Instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database
43b862c2-0590-456e-8079-270857ecb7ef
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4062172211543 | UNV
|
1 | 203mm x 45mm x 34mm | 190.00g | 0.31dm³ |
| 4062172211550 | VS
|
20 | 418mm x 185mm x 108mm | 4014.00g | 8.35dm³ |
Downloads
Technický list výrobku
Accessories optional
PRH101 -USB
4055462165152
CPR30 -USB
4055462165169
Information about Family
Product family features
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Supply voltage: 220…240 V
- Usable as DT6 (2-channel) or DT8 (Tunable White) driver
- Constant Lumen Output (CLO)
- Integrated customizable thermal management (Driver Guard)
- SELV driver
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
