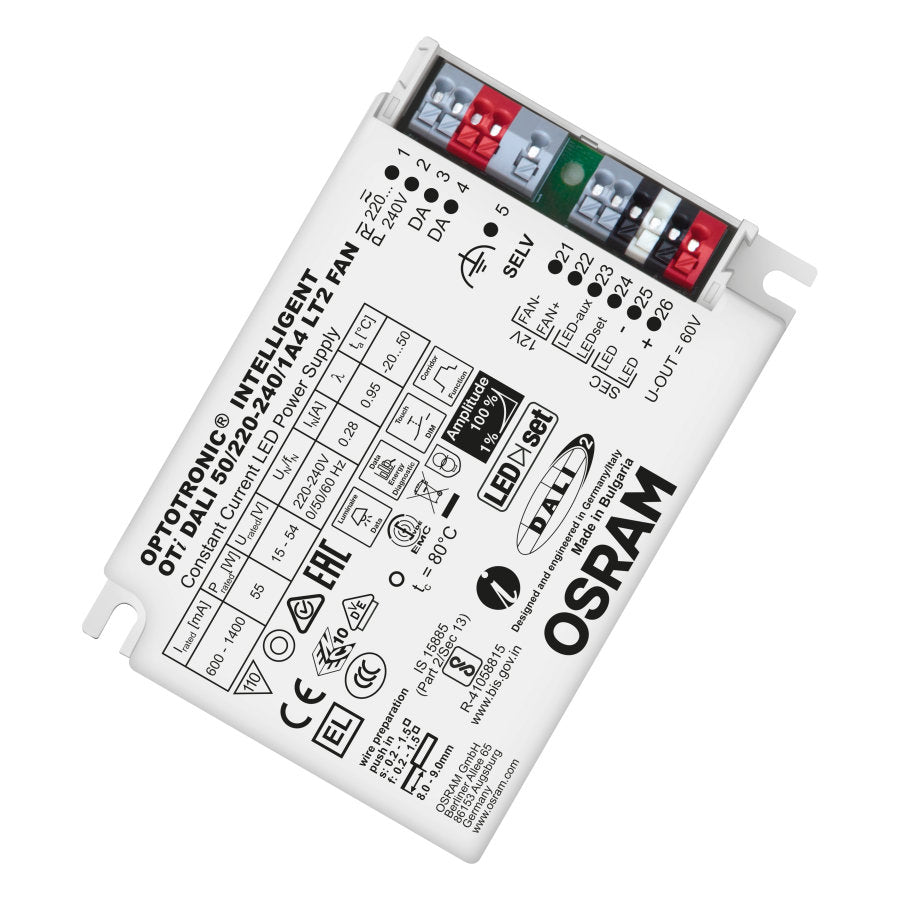

Wattage:
Voltage:
EAN:
Manufacturer:
Product family benefits
- Versatile DALI window driver due to flexible output characteristic
- Very high efficiency
- Protection of the system thanks to thermal management and Smart Control
- High-quality dimming of 1…100 % by amplitude dimming
- Easy to use in corridors and restrooms because of three-level Corridor function
- Touch DIM application: easy to control via pushbutton or sensor
- Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
- Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
- Feedback of power consumption and operating hours (Fit for SMART GRID)
- Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Areas of application
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
- Suitable for indoor SELV installations
- Suitable for luminaires of protection classes I and II
- Suitable for downlights, spotlights and LED panels
- Installation via Cable Clamp Kit possible (depending on version of product)
Technical Data
Electrical data
Nominal input voltage
220…240 V
Mains frequency
0/50/60 Hz
Input voltage AC
198…264 V
Input voltage DC
176…276 V
Total harmonic distortion
< 10 %
Power factor λ
> 0.95
ECG efficiency
91 %
Device power loss
7.5 W
Power loss in stand-by mode
<0.15 W
Inrush current
30 A
Max. ECG no. on circuit breaker 10 A (B)
12
Max. ECG no. on circuit breaker 16 A (B)
20
Max. ECG no. on circuit breaker 25 A (B)
-
Surge capability (L/N-Ground)
2 kV
Surge capability (L-N)
1 kV
Nominal output voltage
15…54 V
U-OUT (working voltage)
60 V
Nominal output current
600…1400 mA
Output current LEDset open
300 mA
Output current LEDset shorted
1050 mA
Default output current
1050 mA
Output current tolerance
±3 %
Output ripple current (100 Hz)
< 2 %
Output PSTLM
≤1
Output SVM
≤0.4
Nominal output power
55 W
Galvanic isolation
SELV
Dimensions & weight
Mounting hole spacing, length
99.0 mm
Mounting hole spacing, width
64.0 mm
Product weight
180.00 g
Cable cross-section, input side
0.2…1.5 mm²
Cable cross-section, output side
0.2…1.5 mm²
Wire preparation length, input side
8.0…9.0 mm
Wire preparation length, output side
8.0…9.0 mm
Height
25.0 mm
Length
110.0 mm
Width
75.0 mm
Colors & materials
Casing material
Plastic
Temperatures & operating conditions
Ambient temperature range
-20…+50 °C
Maximum temperature at tc test point
80 °C
Max.housing temperature in case of fault
110 °C
Temperature range at storage
-25…85 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
50000 / 100000 h
Capabilities
Dimmable
Yes
Dimming interface
DALI / Touch DIM / Touch DIM Sensor
Dimming range
1…100 %
Dimming method
Amplitude Modulation
Constant lumen function
Programmable
Overheating protection
Automatic reversible
Overload protection
Automatic reversible
Short-circuit protection
Automatic reversible
No-load proof
Yes
Max. cable length to lamp/LED module
2.0 m
Suitable for fixtures with prot. class
I / II
Type of connection, output side
Push terminal
Number of channels
1
Programming interface
DALI, LEDset
DALI-2 Diagnostic Data
Yes
DALI-2 Energy Data
Yes
Programming
Tuner4TRONIC Field App
No
Programming device
DALI / LEDset
Programmable features
Lamp Operating Time
Yes
Driver Guard
No
DALI Settings
Yes
Emergency Mode
Yes
DALI-2 Luminaire Data
Yes
Configuration Lock
No
Soft Switch Off
Yes
Dim to Dark
No
TouchDIM + Sensor
Yes
Corridor Functionality
Yes
OEM Key
Yes
Certificates & standards
Approval marks – approval
ENEC 10 / VDE / EMC / EL / CE / DALI-2
Standards
Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384/Acc. to EN 62386/Acc. to IEC 62386-101:Ed2/Acc. to IEC 62386-102:Ed2/Acc. to IEC 62386-207:Ed1
Protection class
II
Type of protection
IP20
