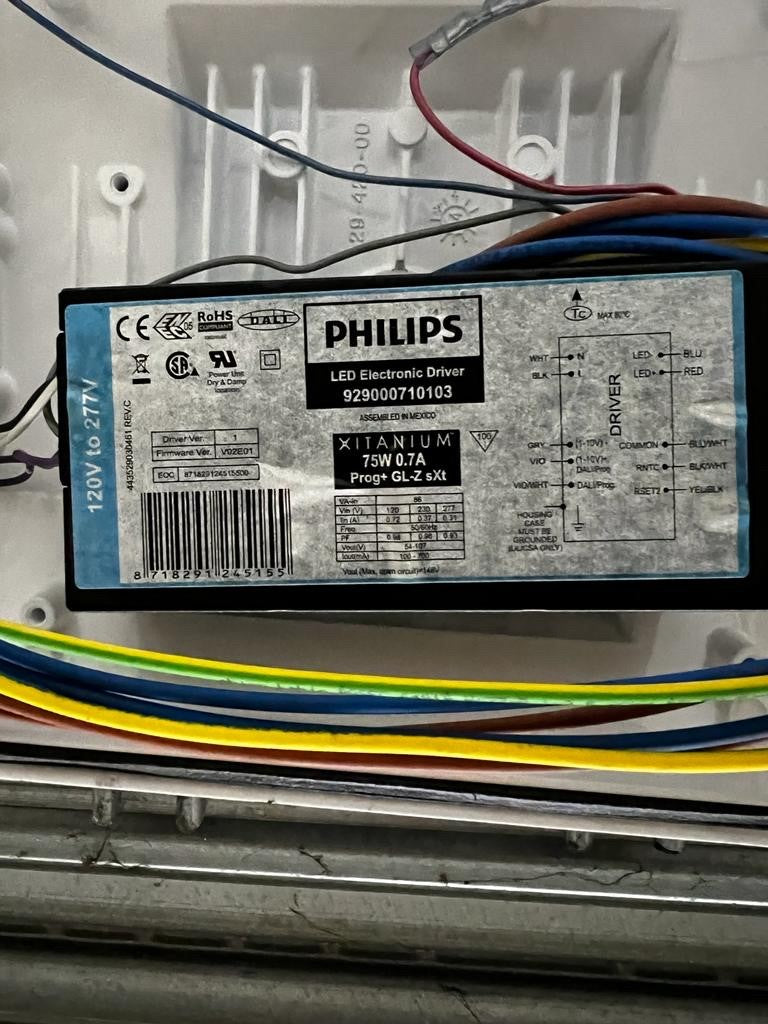

Philips Xitanium 75W 0.70A Prog+ GL-Z sXt 929000710103

Product data General Information Constant light output Programmable Number of products on MCB (16 A type B) (max.) 11 Operating and Electrical Input frequency 50 to 60 Hz Total harmonic distortion IEC (max.) 20 % Output current ripple (nom.) 30 % Maximum efficiency 90 % Power factor 100% load (min.) 0.97 Output current (nom.) 100-700 mA Output current tolerance (max.) 5 % Output current tolerance (min.) -5 % Input voltage (AC) 120-277 V Power factor 50% load (min.) 0.94 Earth leakage current (max.) 0.35 mA Input current (max.) 380 mA Input power (nom.) 84 W Inrush current peak (max.) 80 A Output power (nom.) 25-75 W Output voltage 54-107 V Inrush current width to 50% of peak 150 µs Wiring Control wire length 275 mm Output wire length 275.0 mm Control wire cross section (nom.) 0.82 mm² Output wire cross section (nom.) 0.82 mm² Input Wire Cross Section 0.82 mm² Temperature T ambient (max.) 55 °C T ambient (min.) -40 °C T case lifetime (nom.) 68 °C T-Case maximum (max.) 80 °C Temperature protection module Programmable T-Case switch off (nom.) 85 °C Controls and Dimming Control interface 1-10V/AmpDim/DALI/Dynadimmer Dimming range 100-10 % Lumistep dimming time - Lumistep dimming time after midpoint - Mechanical and Housing Colour of the Housing Black Datasheet, 2018, August 31 data subject to change Lighting Lighting Approval and Application Surge protection (common/differential) 4/4 kV IP classification - Isolation classification Class II Approval marks ENEC certi‚cate CE marking RoHS compliance Product Data Full product code 871829124515500 Order product name Xitanium 75W 0.70A Prog+ GL-Z sXt EAN/UPC – product 8718291245155 Order code 929000710103 Numerator – quantity per pack 1 Numerator – packs per outer box 12 Material no. (12NC) 929000710103 Net weight (piece) 0.731 kg Dimensional drawing X1 X1 A1 A2 A3 C1 B2 B1 D1x3 Xitanium 75W 0.70A Prog+ GL-Z sXt Product D1 A2 B2 C1 A1 A3 X1 B1 Xitanium 75W 0.70A Prog+ GLZ sXt 5.5 mm 155 mm 50 mm 38 mm 165 mm
