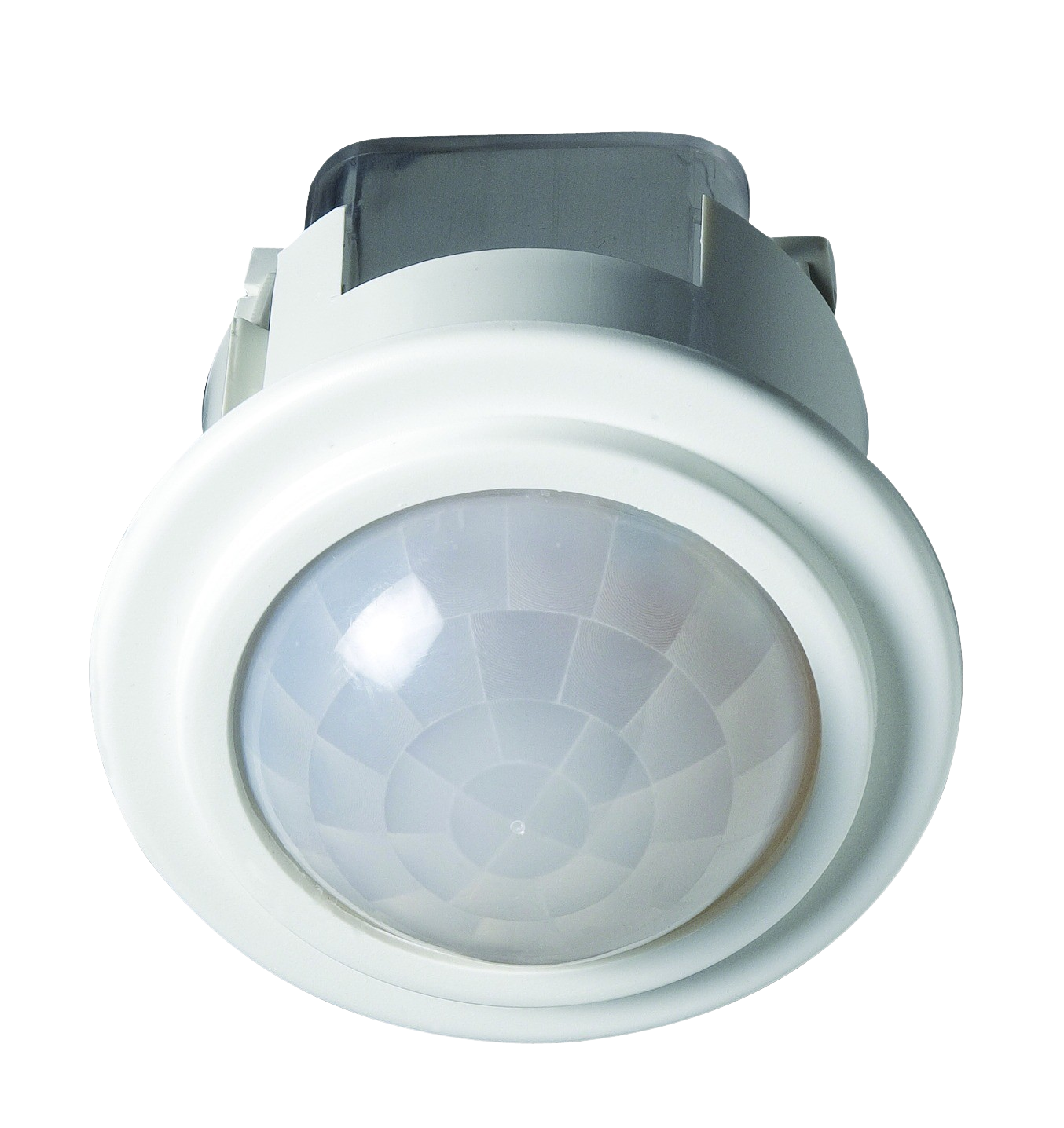

PROTON 360° PIR, recessed, IP20, 75mm, White RR360-01
Roll over image to zoom in Click on image to zoom
PROTON 360° PIR, recessed, IP20, 75mm, White RR360-01

PROTON 360° PIR, recessed, IP20, 75mm, White RR360-01

RobusSKU: RR360-01
Price:
£39.25

Wattage:
Voltage:
EAN:
Manufacturer:


  • Suitable for recessed indoor applications
  • Injection moulded ABS body - impact resistant
  • Clear terminal cover, integral clamp and large mains terminals for 2 x 1.5mm² conductors
  • Terminations are safe and visible and enables loop-in/loop-out for supply to other sensors
  • Passive infra red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering
  • Detection range 360°, detection distance 9m at 2.8m mounting height
  • Adjustable time delay of 5sec to 15min ensures that lighting is switched off with required delay
  • Adjustable lux setting of 2lx to 2000lx
  • LED load max 300W
  • Fluorescent load max 600W
  • Resistive load max 2000W
  • Depth 60
    Diameter 75
    Cut Out 62
    Total Power 1000
    Operating Voltage 220-240
    I P Rating 20
    Ambient Temp 5 +25
    Warranty 5 years
    Safety Class Class 2
    Colour White
  •  RR360-01_1108-ROBUS-Sensor-Range-DL-web
  •  RR360-01_Instruction Manual for RR360-01 ISSUE 3
  • RR360-01_MOTION DETECTOR 360° 75MM INTERNAL PIR RR360 - Features & Benefits-DE
  •  RR360-01_RR360-01-Features & Benefits
  •  RR360-01_RR360-01-Instruction Leaflet SLO
