Wattage:
Voltage:
EAN:
Manufacturer:
123x79x33mm

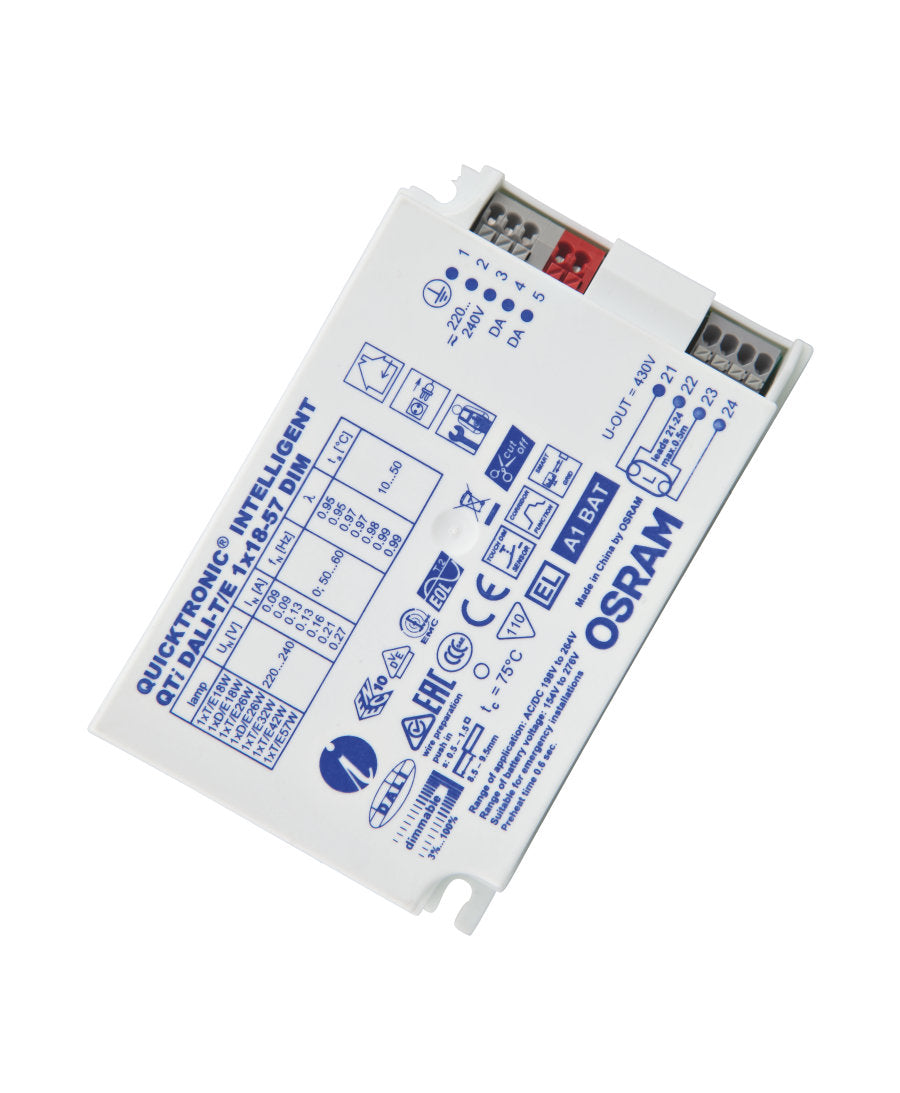

Multi Wattage dali dimmable
1) At T case = 65°C at T c point / 10% failure rate Product name Lamp group QTi DALI-T/E 1x18…57 DIM DULUX D/E 26 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX L 24 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX L 40 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX T/E 18 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 50 60 70 Lifetime [h] 100000 100000 100000 DULUX T/E 32 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX T/E 32 W CONSTANT ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUX T/E 42 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 DULUx T/E 42 W CONSTANT ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 FC 22 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 90000 FC 40 W ECG ambient temperature [ta] 40 50 60 Temperature at tc-point [°C] 55 65 75 Lifetime [h] 100000 100000 9000
Technical Data
Electrical data
Nominal voltage
220…240 V
Mains frequency
50…60 Hz
Input voltage DC
154…276 V
Operating frequency
42…130 kHz
Max. ECG no. on circuit breaker 10 A (B)
12
Max. ECG no. on circuit breaker 16 A (B)
19
Inrush current
30 A
Light technical data
Starting time
0.6 s
Dimensions & weight
Length
123.0 mm
Width
79.0 mm
Height
33.0 mm
Mounting hole spacing, length
129.5 mm
Mounting hole spacing, width
67.0 mm
Product weight
227.00 g
Cable cross-section, input side
0.5…1.5 mm²
Temperatures & operating conditions
Ambient temperature range
+10…+50 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
100000 h
Additional product data
Product remark
Optional cable clamp, see chapter ECG mountings - cable clamp
Suitable for lamp power (1 lamp)
18…57 W
Capabilities
Dimming interface
DALI / Touch DIM / Touch DIM Sensor
Dimming range
3…100 %
Dimmable
Yes
Overheating protection
Yes
End of lamp life safety shutdown
EOL T.2
Suitable for fixtures with prot. class
I
Max. cable length to lamp/LED module
0.5 m
Certificates & standards
Approval marks – approval
VDE / VDE-EMC / EL / EAC / RCM / CCC
Standards
Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to IEC 62386-101:Ed1/Acc. to IEC 62386-102:Ed1
EEI – Energy Label
A1 BAT
Protection class
I
Type of protection
