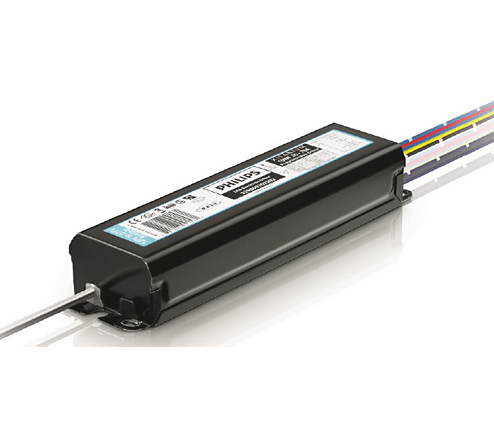

Xitanium 150W 0.35-0.7A Prog GL sXt 929000702202

Specifications

General Information

Constant light output	Programmable
Number of Products on MCB (16A Type B) (Max)	7

Operating and Electrical

Input Frequency	50 to 60 Hz
Total Harmonic Distortion IEC (Max)	20 %
Output Current Ripple (Nom)	30 %
Maximum Efficiency	93 %
Power Factor 100% Load (Min)	0.97
Output Current (Max)	700 mA
Output Current (Nom)	Programmable (350-700) mA
Output Current Tolerance (Max)	5 %
Output Current Tolerance (Min)	-5 %
Input Voltage (AC)	120-277 V
Power Factor 50% Load (Min)	0.94

Earth Leakage Current (Max)	0.7 mA
Input Current (Max)	700 mA
Input Power (Nom)	165 W
Inrush Current Peak (Max)	108 A
Output Power (Nom)	30-150 W
Output Voltage	125-280 V
Inrush Current Width to 50% of Peak	140 µs
Output Current (Min)	50 mA
Output Voltage (Max)	280 V
Output Voltage (Min)	125 V

Wiring

Control Wire Length	500 mm
Output Wire Length	500 mm
Control Wire Cross Section (Nom)	0.82 mm²

Output Wire Cross Section (Nom)	0.82 mm²
Input Wire Cross Section (Nom)	0.82 mm²

Temperature

T-Ambient (Max)	55 °C
T-Ambient (Min)	-40 °C
T-Case Lifetime (Nom)	71 °C
T-Case Maximum (Max)	80 °C

Module Temperature Protection	Programmable
T-Case Switch Off (Nom)	92 °C

Controls and Dimming

Control Interface	1-10V/DALI/Dynadimmer
Dimming Range	100-10 %
Lumistep Dimming Time	-

Lumistep Dimming Time After Midpoint

-

Mechanical and Housing

Housing Color	Black
Housing	F-CAN 240mm

Housing Dimensions

240.5 x 59.8 x 37.6

Approval and Application

Surge Protection (Common/Differential)	3/3 kV
IP Classification	IP 66  [ Ingress Protection 66]

Isolation Classification	Class II
Approval Marks	ENEC certificate CE marking RoHS compliance

Product Data

Full product code	872790078351300
Order product name	Xitanium 150W 0.35-0.7A Prog GL sXt
EAN/UPC - Product	8718291999782
Order code	929000702202
Numerator - Quantity Per Pack	1

Numerator - Packs per outer box	10
Material Nr. (12NC)	929000702202
Net Weight (Piece)	1.048 kg
