Wattage:
Voltage:
EAN:
Manufacturer:
Specifications
General Information
-
Nominal lifetime
100,000 hour(s)
-
Lighting Technology
LED
Operating and Electrical
-
Line Frequency
50 to 60 Hz
-
Input Frequency
50 to 60 Hz
-
Mains voltage operation (DC)
168-275 V
-
Total Harmonic Distortion IEC (Max)
20 %
-
Output Current Ripple (Max)
4 %
-
Maximum Efficiency at Full Load
90.9 %
-
Output Current (Max)
350 mA
-
Output Current Tolerance (Max)
5 %
-
Mains voltage performance (DC)
186-250 V
-
Power Factor (Fraction)
0.9
-
Open Circuit Voltage (DC) (Max)
250 V
-
Protection Level Up (L-N) at 5 kA (Max)
1 kV
-
Protection Level Up (LN-Earth) at 5 kA (Max)
2 kV
-
Input current (AC)
0.18 mA
-
Input current (DC)
0.22
-
Inrush Current Peak (Max)
19.4 A
-
Output Power (Max)
35 W
-
Default output current
80 mA
-
Inrush Current Width to 50% of Peak
200 µs
-
Power Factor 100% Load (Max)
0.9
-
Energy Metering
Yes
-
Constant Current (CC)
True
-
Constant Voltage (CV)
False
-
Diagnostics
True
-
Output Power (Min)
10 W
-
Output Current (Min)
80 mA
-
Output Voltage (Max)
220 V
-
Output Voltage (Min)
50 V
-
Number of Products on MCB (16A Type-C) (Max)
30 piece/unit
Wiring
-
Connector Type Input Terminals
Wago 744
-
Hot Wiring
no
-
Connector Type Output Terminals
Wago 744
-
Output Wire Cross Section (Max)
1.5 mm²
-
Output Wire Cross Section (Min)
0.5 mm²
-
Cable Length From Device to Lamp
2 m
-
Input Wire Gauge
16-20
-
Input wire strip length
8 mm to 9 mm
-
Input Wire Cross Section (Max)
1.5 mm²
-
Input Wire Cross Section (Min)
0.5 mm²
-
Output wire strip length
8 mm to 9 mm
System characteristics
-
Central DC Operation
Yes
-
YellowDot ready
No
Temperature
-
Ambient temperature range
-25 °C to 50 °C
-
T-Case Lifetime (Max)
70 °C
-
T-Case Maximum (Max)
80 °C
-
Module Temperature Protection
no
-
Maximum case temperature (in case of failure)
110 °C
Controls and Dimming
-
Dimmable
DALI
-
Dimming Range
100-1 %
-
D4i compliant
No
-
DynaDimmer
No
-
Constant light output
Programmable
Mechanical and Housing
-
Product Length
280 mm
-
Housing
Office 280x30x16 7p4p NFC
-
Overall length
280 mm
-
Overall width
30 mm
-
Overall height
16 mm
-
Dimensions (Height x Width x Depth)
16 x 30 x 280 mm
Approval and Application
-
Ingress protection code
IP20 [Finger-protected]
-
Isolation Classification
No
-
Short Circuit Protection
Protected
-
Over Power Protection
Protected
-
Open Circuit Protection
Protected
-
Approval Marks
CCC certificateCE markingENEC certificateRCM complianceREACH complianceRoHS compliance
-
Corridor Mode
True
-
Output Current Set Options
LEDset,Programmable,SimpleSet
-
Protection class IEC
Safety class I
Product Data
-
Order product name

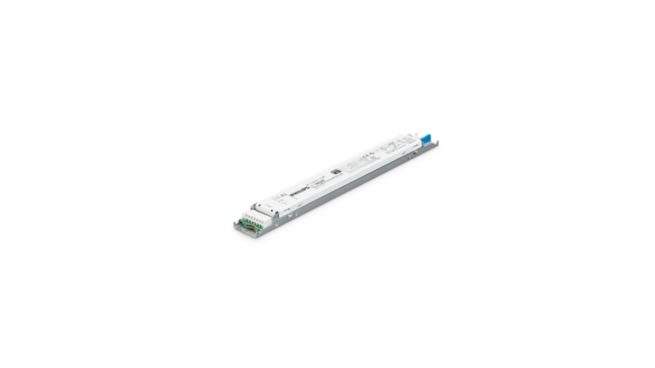

Xitanium 35W 0.08-0.35A 220V TD16 230V
-
Full product name
Xitanium 35W 0.08-0.35A 220V TD16 230V
-
Full product code
871869965359000
-
Order code
929001681406
-
Material Nr. (12NC)
929001681406
-
Numerator - Quantity Per Pack
1
-
EAN/UPC - Product/Case
8718699653590
-
Numerator - Packs per outer box
24
- EAN/UPC - Case
