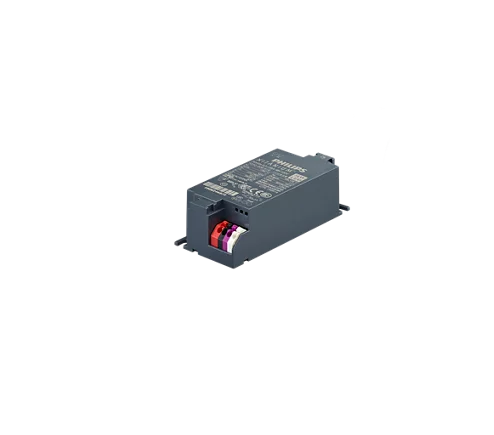

Xitanium 36W/m 0.3-1.05A 54V 230V

Specifications  929002101206

General information

Protection class IEC

Safety class I/II

Operating and electrical

Output Current Ripple (Max)	4 %
Output Current (Max)	1050 mA
Open Circuit Voltage (DC) (Max)	60 V
Output Power (Max)	36 W

Output Power (Min)	11 W
Output Current (Min)	300 mA
Output Voltage (Max)	54 V
Output Voltage (Min)	24 V

System characteristics

Central DC Operation

Yes

YellowDot ready

No

Temperature

T-Case Lifetime (Max)

80 °C

T-Case Maximum (Max)

80 °C

Controls and dimming

Dimmable

No

Mechanical and housing

Product Length	97 mm
Housing	Mini 97x43x30 2p2p
Housing Dimensions	97.2 x 43 x 30

Overall length	97.2 mm
Overall width	43 mm
Overall height	30 mm

Approval and application

IP Classification	IP20  [ Finger-protected]
Isolation Classification	Class I and Class II
Approval Marks	CE marking CB Certificate ENEC certificate CCC certificate RCM compliance

Output Current Set Options

NFC

Product data

Full product code	871869964976000
Order product name	Xitanium 36W/m 0.3-1.05A 54V 230V
EAN/UPC - Product	8718699649760
Order code	929001486006

Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	20
Material Nr. (12NC)	929001486006
Net Weight (Piece)	0.100 kg
