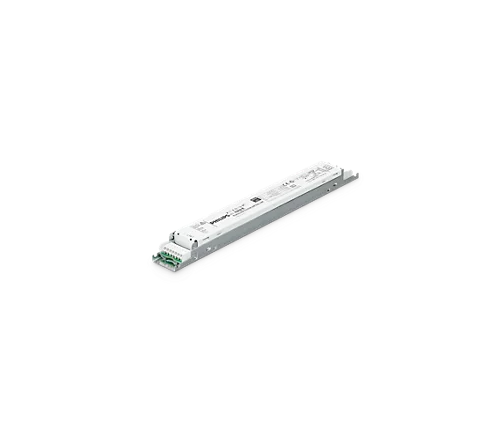

Xitanium 75W 0.12-0.4A 215V TD 230V

Specifications

General information

Protection class IEC	Safety class I
Constant light output	Programmable
Nominal Lifetime (Nom)	50000 h
Number of Products on MCB (16A Type B) (Max)	24

Number of Products on MCB (16A Type-C) (Max)

24 piece/unit

Operating and electrical

Input Frequency	50 to 60 Hz
Mains voltage operation (DC)	168-275 V
Total Harmonic Distortion IEC (Max)	20 %
Output Current Ripple (Max)	4 %
Maximum Efficiency at Full Load	93.1 %
Power Factor 100% Load (Min)	0.9
Power Factor 100% Load (Nom)	0.9
Output Current (Max)	400 mA
Output Current (Nom)	260 mA
Output Current Tolerance (Max)	5 %
Input Voltage (AC)	220-240 V
Mains voltage performance (DC)	186-250 V
Earth Leakage Current (Max)	0.4 mA
Standby Power Consumption (Max)	0.47 W
Power Factor (Min)	0.9
Open Circuit Voltage (DC) (Max)	275 V
Protection Level Up (L-N) at 5 kA (Max)	1 kV
Protection Level Up (LN-Earth) at 5 kA (Max)	2 kV
Input Current (Nom)	370 mA

Input current (AC)	0.37 mA
Input current (DC)	0.45
Input Power (Nom)	75 W
Inrush Current Peak (Max)	22 A
Output Power (Max)	75 W
Output Power (Nom)	48 W
Output Voltage	100-215 V
Default output current	120 mA
Inrush Current Width to 50% of Peak	275 µs
Power Factor 100% Load (Max)	0.9
Energy Metering	Yes
Constant Current (CC)	True
Constant Voltage (CV)	False
Diagnostics	True
Output Power (Min)	21 W
Output Current (Min)	120 mA
Output Voltage (Max)	215 V
Output Voltage (Min)	100 V

Wiring

Connector Type Input Terminals	Wago 744
Hot Wiring	no
Connector Type Output Terminals	Wago 744
Output Wire Cross Section (Max)	1.5 mm²
Output Wire Cross Section (Min)	0.5 mm²
Cable Length From Device to Lamp	4 m

Input Wire Gauge	16-20
Input wire strip length	8 mm to 9 mm
Output wire strip length	8 mm to 9 mm
Input Wire Cross Section (Max)	1.5 mm²
Input Wire Cross Section (Min)	0.5 mm²

System characteristics

Central DC Operation

Yes

YellowDot ready

No

Temperature

T-Ambient (Max)	50 °C
T-Ambient (Min)	-20 °C
T-Storage (Max)	85 °C
T-Storage (Min)	-25 °C
T-Case Lifetime (Max)	75 °C

T-Case Lifetime (Nom)	75 °C
T-Case Maximum (Max)	75 °C
Module Temperature Protection	yes
Maximum case temperature (in case of failure)	110 °C

Controls and dimming

Dimmable	DALI
Control Interface	Touch and DALI Dimming
Dimming Range	100-1 %

D4i compliant	No
DynaDimmer	No

Mechanical and housing

Product Length	360 mm
Housing	Office 360x30x22 744 7 7p SideM
Housing Dimensions	360 x 30 x 22

Overall length	360 mm
Overall width	30 mm
Overall height	22 mm

Approval and application

Surge Protection (Common/Differential)	EN61547 (L-L 1kV, L-G 2kV) kV
Relative Humidity (Operation) (Max)	90 %
Relative Humidity (Operation) (Min)	10 %
IP Classification	IP20  [ Finger-protected]
Isolation Classification	No
Short Circuit Protection	Protected
Over Power Protection	Protected
Open Circuit Protection	Protected

Approval Marks	CCC certificate CE marking ENEC certificate RCM compliance REACH compliance RoHS compliance
Corridor Mode	True
Output Current Set Options	Programmable,Rset2

Product data

Full product code	871829168402200
Order product name	Xitanium 75W 0.12-0.4A 215V TD 230V
EAN/UPC - Product	8718291684022
Order code	929000852103

Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	12
Material Nr. (12NC)	929000852103
Net Weight (Piece)	0.250 kg
