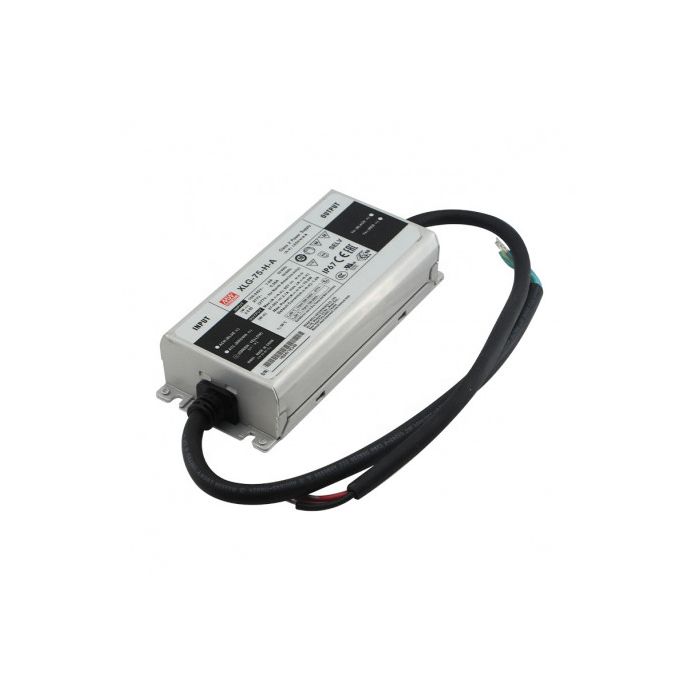

XLG-75-H is a 75W, 1300~2100mA constant power mode LED driver. Designed for use in a wide range of applications where flexibility is required. The all metal case is IP67 rated for outdoor use. Mean Well XLG-75-H is compact and has a 5 year warranty.
Key Features:
1300~2100mA constant power mode
IP67 Rated
Compact metal housing
5 Year warranty
Protection functions: OVP/SCP/OCP/OTP
More Information Manufacturer Mean Well Output Wattage (W) 75 Output Current Selectable Dimmable (Type) No Output Voltage Range (V) 27-56V Dimensions 140 x 63 x 32 mm EMC Standards EN55015(CISPR15) ,GB/T17743, EN61000-3-2 , GB/T17625.1, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 Input Voltage 100-305VAC, 142-431VDC Safety Standards UL8750(type"HL"), UL879, CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1 , GB19510.14; EAC TP TC 004;IS15885(Part2/Sec13)(for XLG-75I type only); IP67 approved Output Voltage Options Single Working Temperature -20 ~ +95C PDF Datasheet XLG-75-H.PDF
More Information Manufacturer Mean Well Output Wattage (W) 75 Output Current Selectable Dimmable (Type) No Output Voltage Range (V) 27-56V Dimensions 140 x 63 x 32 mm EMC Standards EN55015(CISPR15) ,GB/T17743, EN61000-3-2 , GB/T17625.1, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 Input Voltage 100-305VAC, 142-431VDC Safety Standards UL8750(type"HL"), UL879, CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; GB19510.1 , GB19510.14; EAC TP TC 004;IS15885(Part2/Sec13)(for XLG-75I type only); IP67 approved Output Voltage Options Single Working Temperature -20 ~ +95C PDF Datasheet XLG-75-H.PDF
