Product Overview
Self-Contained LED Emergency Luminaire for Surface Mount or Recessed Applications
The XYLUX LD5 is a high performance self-contained LED emergency luminaire supplied with two snap-in optics for Open-Area and Escape Route distribution. XYLUX LD5 LED luminaire incorporates a LED module, a 3.6V 1.7Ah NiMH battery pack and a deep discharge protection circuit.

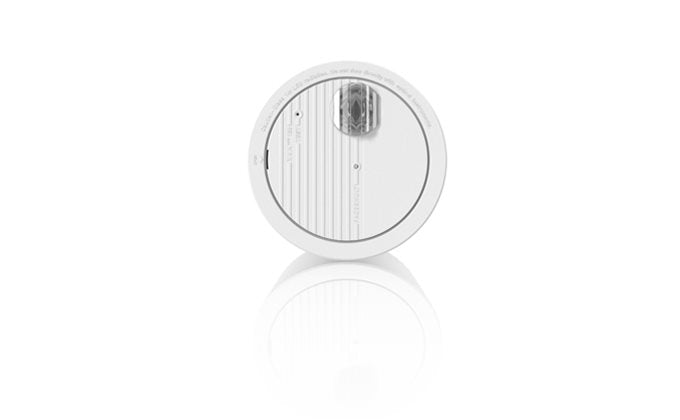

XYLUX LD5 with DALI in White
The unit can be surface mounted or recessed into a 105mm – 110mm cut out using mounting brackets provided. XYLUX LD5 offers an efficient alternative to the 8W fluorescent bulkhead.
Specifications
Supply voltage230 V
Supply frequency50/60 Hz
Supply current (max)35 mA
Power factor0.44
Total circuit power (max)3.4 W
Total circuit power (nominal)0.9 W
Battery charge current100 mA
Ambient temperature (ta)0°C to +35°C
Protection classClass II
Conductor size2.5mm² max
Key Features
- Snap-in optical lenses for both Open-Area and Escape Route applications
- Suitable for surface mount or recessed installation
- Various technology options available
- Integral charge indicator
- Integral test switch
- In-built reflector design achieves efficient output
- SmartChargeTM technology
- 3 hours emergency duration
- Incorporates a 3-cell NiMH battery pack
- Available in black or white
- Designed and manufactured in the UK
Emergency duration3 hours
Recharge period24 hours
Lumen output145 lm
IP ratingIP40
CCT>6300 K
Weight of luminaire246 g
Features
SmartCharge™
SmartCharge™ applies an intermittent charging duty cycle designed for use with NiMH batteries. This provides energy efficient charging maintenance, reduced operating temperatures and optimum service life of NiMH batteries.
SmartCharge™ applies an intermittent charging duty cycle designed for use with NiMH batteries. This provides energy efficient charging maintenance, reduced operating temperatures and optimum service life of NiMH batteries.
Technology Options
Standard
For applications where self-testing is not required or suitable, the non-AutoTest® option provides the same quality and performance expected of Mackwell products, without the AutoTest® feature.
DALI AutoTest®
Provides benefits by enabling testing and monitoring of an emergency lighting system either on-site or via an internet connection. DALI AutoTest® is ideal for monitoring larger buildings and multiple sites. The product defaults to standalone AutoTest when not connected to a DALI network.
For applications where self-testing is not required or suitable, the non-AutoTest® option provides the same quality and performance expected of Mackwell products, without the AutoTest® feature.
DALI AutoTest®
Provides benefits by enabling testing and monitoring of an emergency lighting system either on-site or via an internet connection. DALI AutoTest® is ideal for monitoring larger buildings and multiple sites. The product defaults to standalone AutoTest when not connected to a DALI network.
Relevant Standards
- EN 60598-2-22
- BS 5266-1
- EN 62034
- EN 62386
- EN 62031
- EN 62471
Batteries
The luminaire includes a rechargeable 3.6V 1.7Ah NiMH battery pack for 3 hours operation.
